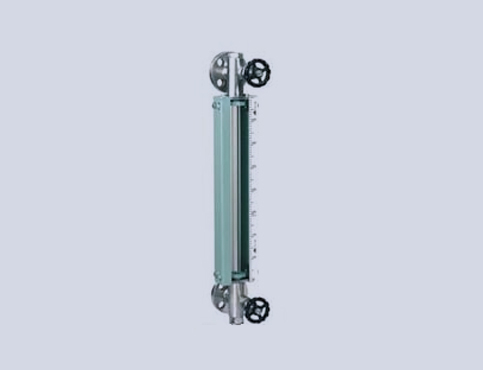

Tubular Level Gauge

A Tubular Level Gauges are an economic solution, visualizing fluid levels in low temperature and pressure environments.

1. Mounting : Side - Side

2. C to C Distance : 250 ~ 2000mm for SS : 250 ~ 1000mm for PP

3. Temperature range : Up to 150 ˚C

4. Pressure Range : Up to 10 kg/cm2

5. MOC : CS, SS304,316,PP

Options : Illuminator, Offset valve with auto ball check
