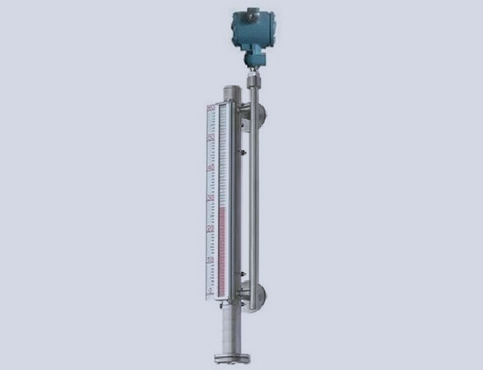

Magnetic Level Gauge

Flexico Magnetic Level Indicator (FLE-MLI) is a simple, rugged instrument designed to indicate level or interface. It indicates level using a float magnetically coupled to an index or a column of rotating flaps.

General Information

1. Mounting : Top Internal / Side - Side

2. C to C Distance : Up to 5500mm.

3. Temperature range : Up to 400 °C

4. Pressure Range : Up to 150 Kg/Cm2

5. Minimum Specific Gravity : 0.5

6. MOC : SS304,316,PP,PVDF

7. Indicator: Bicolor Flappers

8. Hermetically Sealing : Yes (Optional)

9. Options : Alarm contact switch, Transmitter (Hart or without hart),
