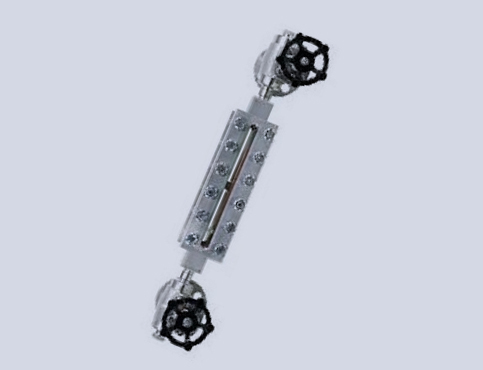

Transparent Level Gauge

Transparent Level Gauges are used to observe visually the level of various liquids in high pressure and temperature environments.

General Information

1. Mounting : Side - Side

2. C to C Distance : Up to 4000mm. for SS / CS
: Up to 1500mm. for PP

3. Temperature range : Up to 400 ˚C

4. Pressure Range : Up to 150 kg/cm2

5. MOC : CS, ASTM A105, SS304,316,PP,

6. Options : Illuminator, Offset Isolation Valves with auto ball check, Mica sheets for glass protection.
