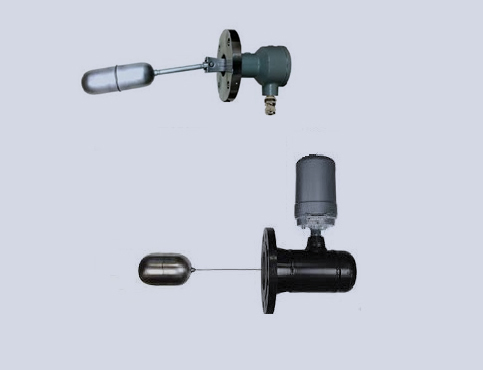

Level Switch (Side Mounted)

Side mounted Float operated switch detects the level of a liquid in a tank or container, can be mounted on the side wall of the tanks. The Float moves in the tank when the liquid level moves and acts as a mechanical switch as the liquid level goes up or down.

1. Mounting : Side Internal

2. Temperature range : Up to 300 ˚C

3. Pressure Range : Up to 100 kg/cm2

4. MOC : SS304,SS316,PP

Options: Cooling fins for high temp.
