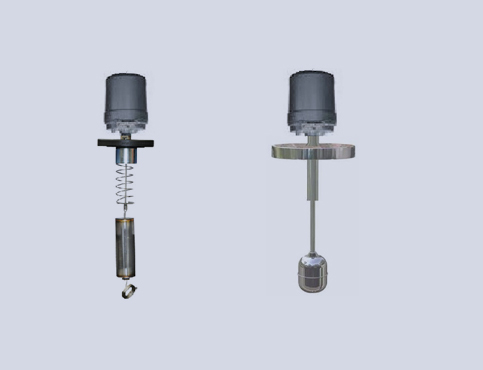

Level Switch (Top Mounted )

Float / Displacer operated switches detects the level of a liquid in a tank or container. It floats / Dispalces on top of the liquid surface and acts as a mechanical switch as the liquid level goes up or down. They can be used for control devices like pumps or alarms to notify users.

1. Mounting : Top Internal

2. Range : 200mm to 1500mm (Float) 400mm to 20000mm (Displacer)

3. Temperature range : Up to 450 ˚C

4. Pressure Range : Up to 100 kg/cm2

5. MOC : CS, ASTM A105, SS304,316,PP

Options : Cooling fins for boiler application
