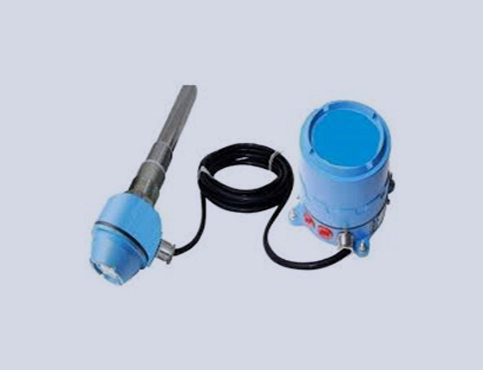

RF Admittance Level Switch

The RF Level switch operates on the basis of RF absorption. The electronic unit generates a sinusoidal wave, applied to the electrode creating a field around it. RF environment absorption changes (Electrical Loss) around the electrode are reflected on the changes of generator supply current.

1. Mounting : Side Internal

2. Application : Liquid / Solid

3. Enclosure : Die Cast Al

4. Insertion length : 100mm to 5000mm

5. Temperature range : Up to 250 ˚C & 600˚C

6. Pressure Range : Up to 10 kg/cm2

Options : Integral with remote housing
